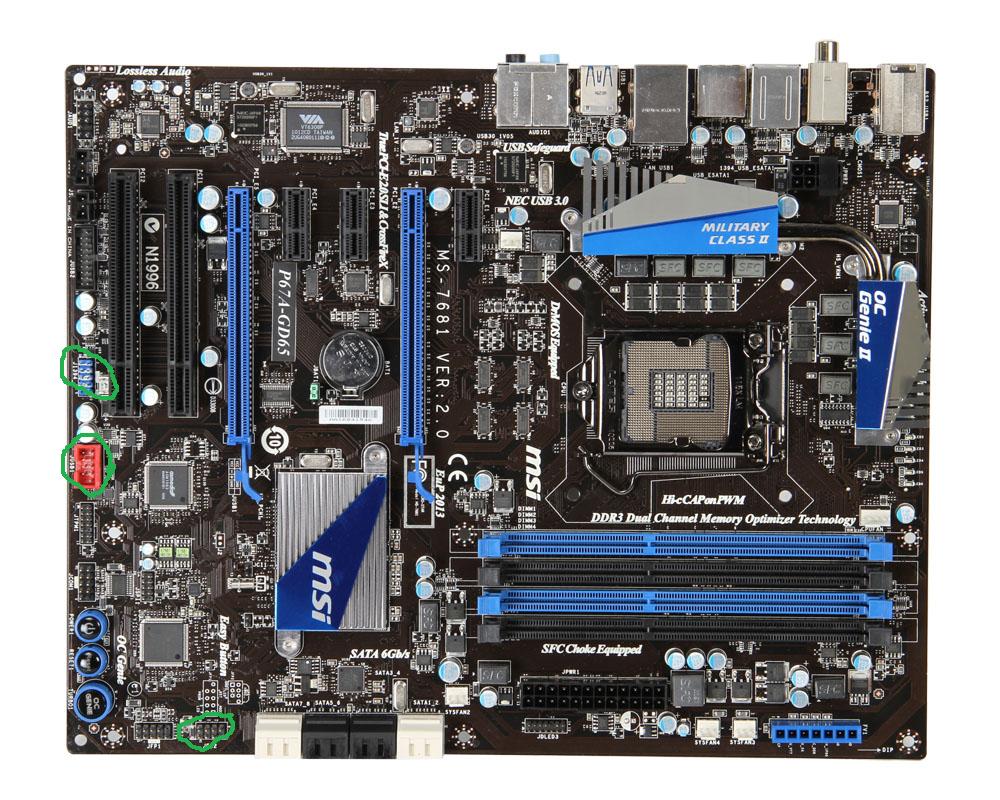

CPU fan = fan on which u should connect the cpu fan (hurdur), if u plug the cpu fan to sysfan mobo will go in alarm
Sys fan = connect a fan to this (back, top, front, w/e)
JFP1 = main connector for hdd led, power switch, reset switch
JFP2 = secundary connecter, most often u will connect speaker (and power led) to this one
REMEMBER: black wire = negative
JUSB1 = for connecting front USB
IT IS RED, because it's different from JUSB2
JUSB1 supports the Super Charger technology (meaning the mobo can charge 1 device (atm) even while computer is in sleeping mode or turned off)
more about supercharger -> see manual & google
JUSB2 = for connecting the USB 3.0 card u got with the mobo
It's a big black connection, bigger than the standard JUSB
J1394_1 = connection for FireWire, most likely not applicable to ur case
JSP1 = S/PDIF connecter, most likely not applicable to ur case
JCOM = connection for serial devices, most likely not applicable to ur case
JAUD1 = connection for front panel audio, most likely u will be able to connect AC97 & HDAUDIO (2 connections on the same cable), connect the HD.
Don't mess with the jumpers >.>, they are fine as they are
Don't know if ur cpu is a k series, but if u want to use the OC genie II; u better look for
a more decent fan, cuz the standard cpu fan is crap.
It's just enough the cool the cpu as it is standard
Forgot to draw lines to JFP1/2, but u'll understand
