New Card is To Big

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

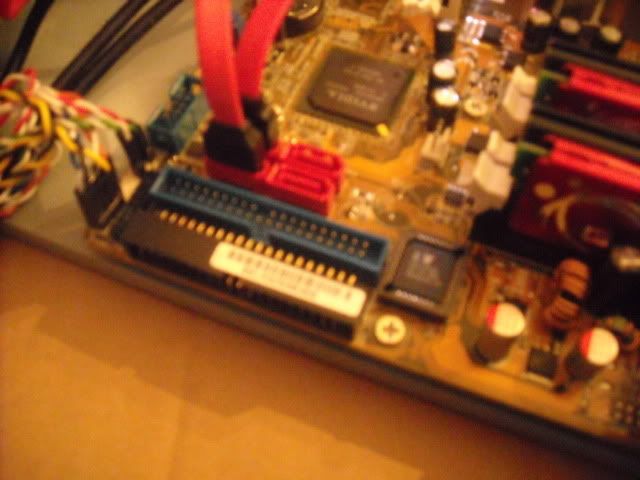

so i decided to get a new graphics card. When i went on to install it i came to find out that it's to big, well... more like to HDD cable is to big. While inspecting the motherboard i see that theres another place i can plug it in, pointing sideways. (well, sort of.) (It's the black one.)

Do you think it's ok to plug it in to that one? Don't really want to fry any part of my computer.

It would be nice to get any kind of answer sometime soon.

cpinney · **Posted:** Sun Jul 27, 2008 2:52 am

first it would be good to know what kind of graphics card you have and what type it is (pci, agp, exc).

and by looking at it, i dont believe it would go in there but i dont know what kind of motherboard u have either, both of these peices of information would help

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

cpinney wrote:

first it would be good to know what kind of graphics card you have and what type it is (pci, agp, exc).

and by looking at it, i dont believe it would go in there but i dont know what kind of motherboard u have either, both of these peices of information would help

card: http://www.newegg.com/Product/Product.a ... 6814130328

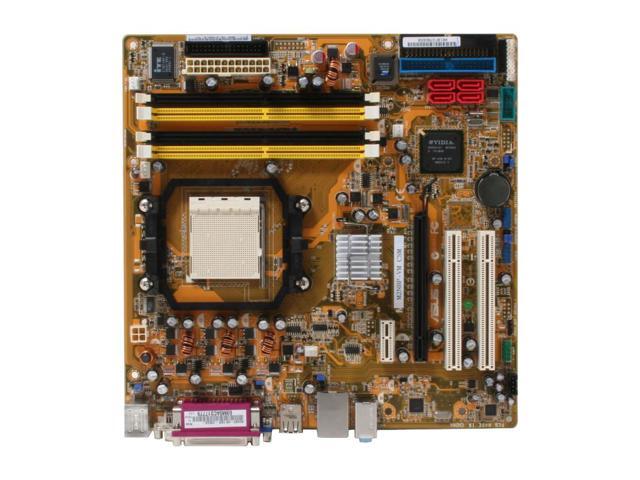

motherboard: http://www.newegg.com/Product/Product.a ... 6813131072

im pretty sure it can go in there, because i put it in just to check if it fits.

cpinney · **Posted:** Sun Jul 27, 2008 4:10 am

to be honest i have no idea how or if u got ur graphics card in the black port u showed.

as u can see by the pic its a IDE connector :\

were u should be plugging it in is PCI express x16 slot below next to the other two pci slots. some tbh im kinda confused by what u have stated previously

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

oh dear, i didn't explain it to well. yes, the card is in the pci-e slot but it's so long that the HDD cable won't fit into the blue socket, but that diagram says that the black one right above it will also work. so do you think it will be okay to boot it up?

cpinney · **Posted:** Sun Jul 27, 2008 5:06 am

wow thats a big ass card lol

anyway if it fits then yes why not, considering u have no other options lol

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

cpinney wrote:

wow thats a big ass card lol

anyway if it fits then yes why not, considering u have no other options lol

I'm just hoping i don't fry it.

cpinney · **Posted:** Sun Jul 27, 2008 5:55 am

shouldnt, considering u said they would both work, and that it fits in.

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

cpinney wrote:

shouldnt, considering u said they would both work, and that it fits in.

well i turned it on, came up with a black screen with that blinking white underline. so is something not getting enough power?

everything is plugged in and i don't know what to do...

what do i press for safe mode?

edit: im crying on the inside

cpinney · **Posted:** Sun Jul 27, 2008 6:52 am

hmm i dont know what u mean by blinking white underline.

it could be that your graphics card isnt in all the way try re-seeding it.

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

cpinney wrote:

hmm i dont know what u mean by blinking white underline.

it could be that your graphics card isnt in all the way try re-seeding it.

well, first im going to try starting up with my original card. just to make sure all the wires that i moved will work.

cpinney · **Posted:** Sun Jul 27, 2008 7:22 am

k sounds good.

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

cpinney wrote:

k sounds good.

wires work, so it has something to do with the card, i'll try re installing it tomorrow (whenever that is).

im getting output from the card im just not getting the output i want...

Downgraded · **Joined:** Jul 2008 **Posts:** 19 **Location:** Ohio

wait a minute.
are you trying to plug the cables which I have grouped in circle 1 into the black connector which I have labled circle 2?

If so, I wouldn't be suprised if you fried something. You are trying to plug SATA cables into an IDE connector.

cpinney · **Posted:** Mon Jul 28, 2008 1:34 am

i dont believe he is

unless i misunderstood him... again

Downgraded · **Joined:** Jul 2008 **Posts:** 19 **Location:** Ohio

I think he is. Well it's a totally different connector. Ther would explain the black screen with the white flashing cursor at the bottom. I hope he didn't end up frying his shit.

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

My god I've most likely explained this wrong.

I know where the wires go, they work, it has something to do with the card. it being to big isn't the issue anymore.

edit: forgot to add. nothing is fried as far as i know, and it runs just fine... as far as i know.

cpinney · **Posted:** Mon Jul 28, 2008 3:50 am

ok so ur problem is now your graphics card just isnt working?

Disturbed · **Posted:** Mon Jul 28, 2008 6:37 am

Make sure that you plugged in the pci-express power connector into the back of your video card.
If your power supply doesn't have a pci-express power connector then use the molex to pci-express adapter that came with your video card. Also make sure that your power supply has enough amps on the 12v rail. You can check by looking at your power supply and seeing what it says for 12v.

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

cpinney wrote:

ok so ur problem is now your graphics card just isnt working?

Yes, that's the problem now.

Disturbed wrote:

Make sure that you plugged in the pci-express power connector into the back of your video card.
If your power supply doesn't have a pci-express power connector then use the molex to pci-express adapter that came with your video card. Also make sure that your power supply has enough amps on the 12v rail. You can check by looking at your power supply and seeing what it says for 12v.

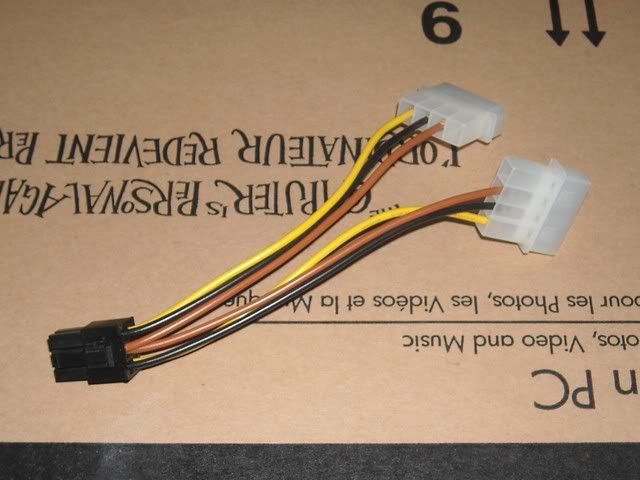

Don't know what adapter it's called but this is what i got:

ignore the box, that's for my moms computer.

plugged that in (yes, both of them)

goes, to a blank screen with a blinking white underscore in the top left.

i wish this keyboard would let me get into safe mode.

Edit: Oh, and power supply has +12v and -12v on it. so i geuss it does.

Disturbed · **Posted:** Mon Jul 28, 2008 2:14 pm

Yea they all have +12 and -12v, I need to know what it says under or above it.
Ex: 27a

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

Disturbed wrote:

Yea they all have +12 and -12v, I need to know what it says under or above it.
Ex: 27a

under +12v it says 19A and under -12v it says 0.8A

Disturbed · **Posted:** Tue Jul 29, 2008 8:04 am

What are the specs of the rest of your system?

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

Disturbed wrote:

What are the specs of the rest of your system?

Operating System: Windows XP Home Edition (5.1, Build 2600) Service Pack 2
Processor: AMD Athlon(tm) 64 X2 Dual Core Processor 5400+, MMX, 3DNow (2 CPUs), ~2.8GHz
Memory: 3070MB RAM
Page File: 592MB used, 4362MB available
Chip type: GeForce 7600 GT
Display Memory: 256.0 MB
Current Mode: 1280 x 1024 (32 bit) (60Hz)

Disturbed · **Posted:** Wed Jul 30, 2008 1:46 am

You're definitely going to need a new power supply.
Yours doesn't have two +12v's does it?

http://www.newegg.com/Product/Product.a ... 6817139003

That would be a good upgrade for you considering that your power supply
is in desperate need of an upgrade.

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

Disturbed wrote:

You're definitely going to need a new power supply.
Yours doesn't have two +12v's does it?

http://www.newegg.com/Product/Product.a ... 6817139003

That would be a good upgrade for you considering that your power supply
is in desperate need of an upgrade.

... another thing i need to upgrade :/

i know this is a stupid question but will it fit in the case i have now?

Disturbed · **Posted:** Wed Jul 30, 2008 2:19 am

What kind of case or what computer do you have?
If your power supply says ATX Power Supply on the side it will fit definitely.

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

Disturbed wrote:

What kind of case or what computer do you have?
If your power supply says ATX Power Supply on the side it will fit definitely.

oddly enough my computer isn't even sold on newegg anymore

this case though

http://www.newegg.com/Product/Product.a ... 6811119118

the power supply is different from the one in that case.

Disturbed · **Posted:** Wed Jul 30, 2008 3:33 am

Yea the power supply will definitely work.
It has a PCI Express connector for your video card so you don't
have to use that adapter either.

Midori · **Joined:** Mar 2007 **Posts:** 3425 **Location:**

this is going to be the most expensive upgrade i've done... and all for a new monitor :roll:
